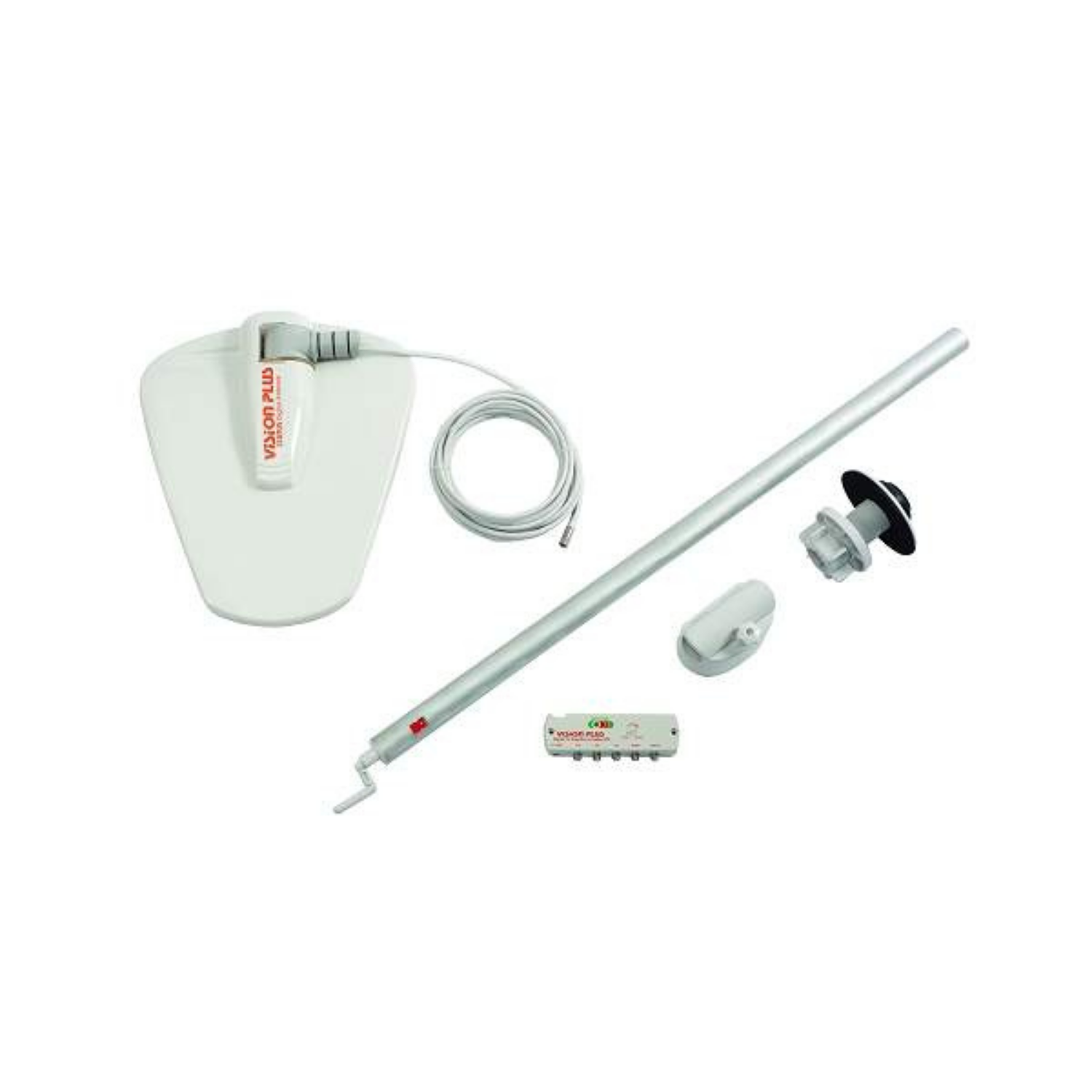

STATUS 580 Directional Digital TV & FM DAB Radio Antenna System

New features:

• Unique integrated TV Signal Finder
• Horizontal & Vertical Polarisation Indicator
• Low Profile Roof Assembly
• DAB & FM Radio Reception
* Internal FM radio antennas

At the heart of this new antenna system is the Vision Plus VP5 Digital TV Amplifier with unique integral Signal Finder.

With its neat, slim-line design, the VP5 offers the latest in TV / Radio reception technology and features:

• Slim-line compact design
• Digital TV, DAB and FM Radio reception
• Dedicated TV Transmitter locator – Signal Finder
• LED light power indicator with red, yellow and green colours to indicate signal strength
• Variable Gain Control for strong and weak signal areas
• 3 TV Connections and 1 dedicated Radio connection
• 12 – 24V DC Power Input connection
• Antenna IN connection
• On / Off Power switch
* 3 year guarantee

Dimensions

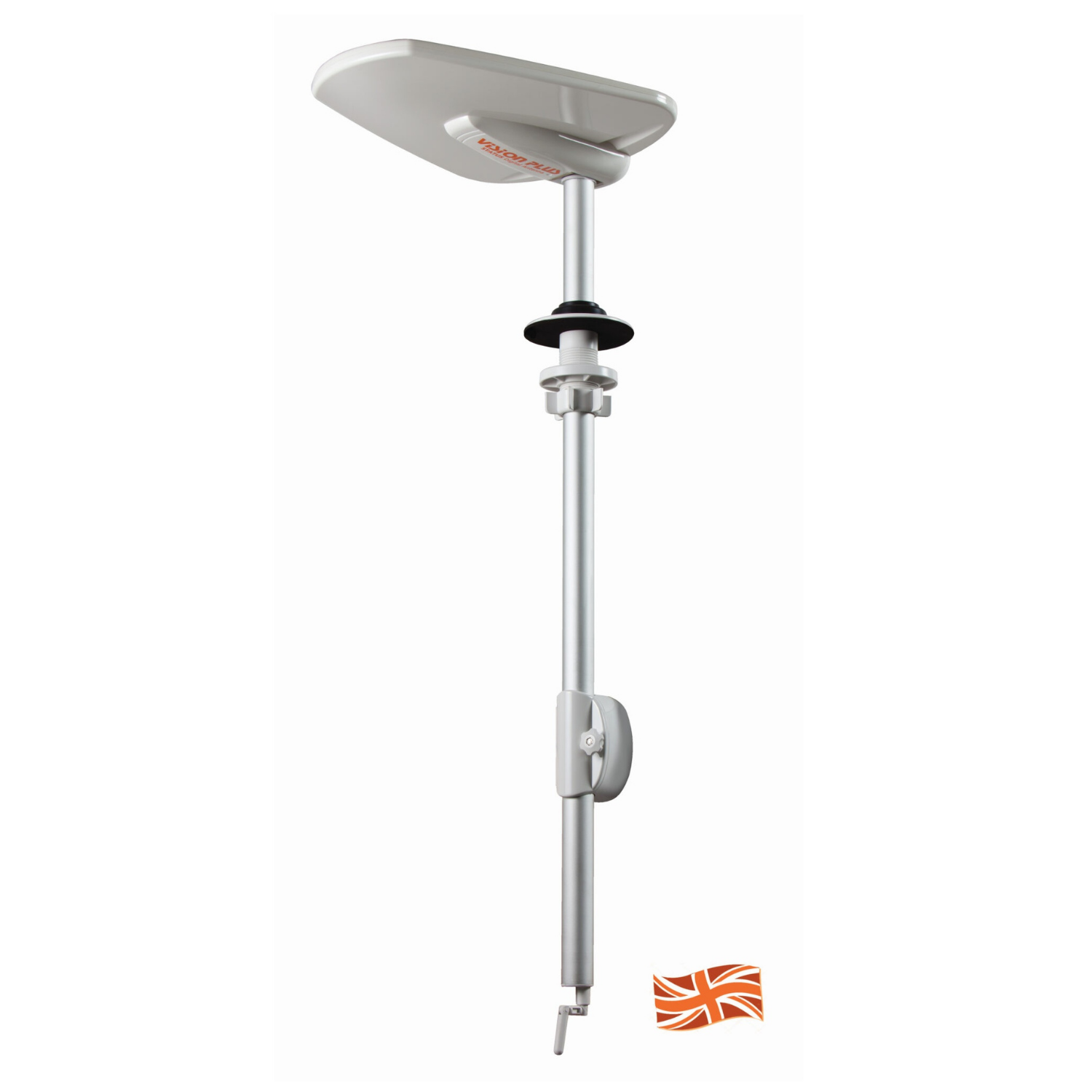

* Mast Length 920mm

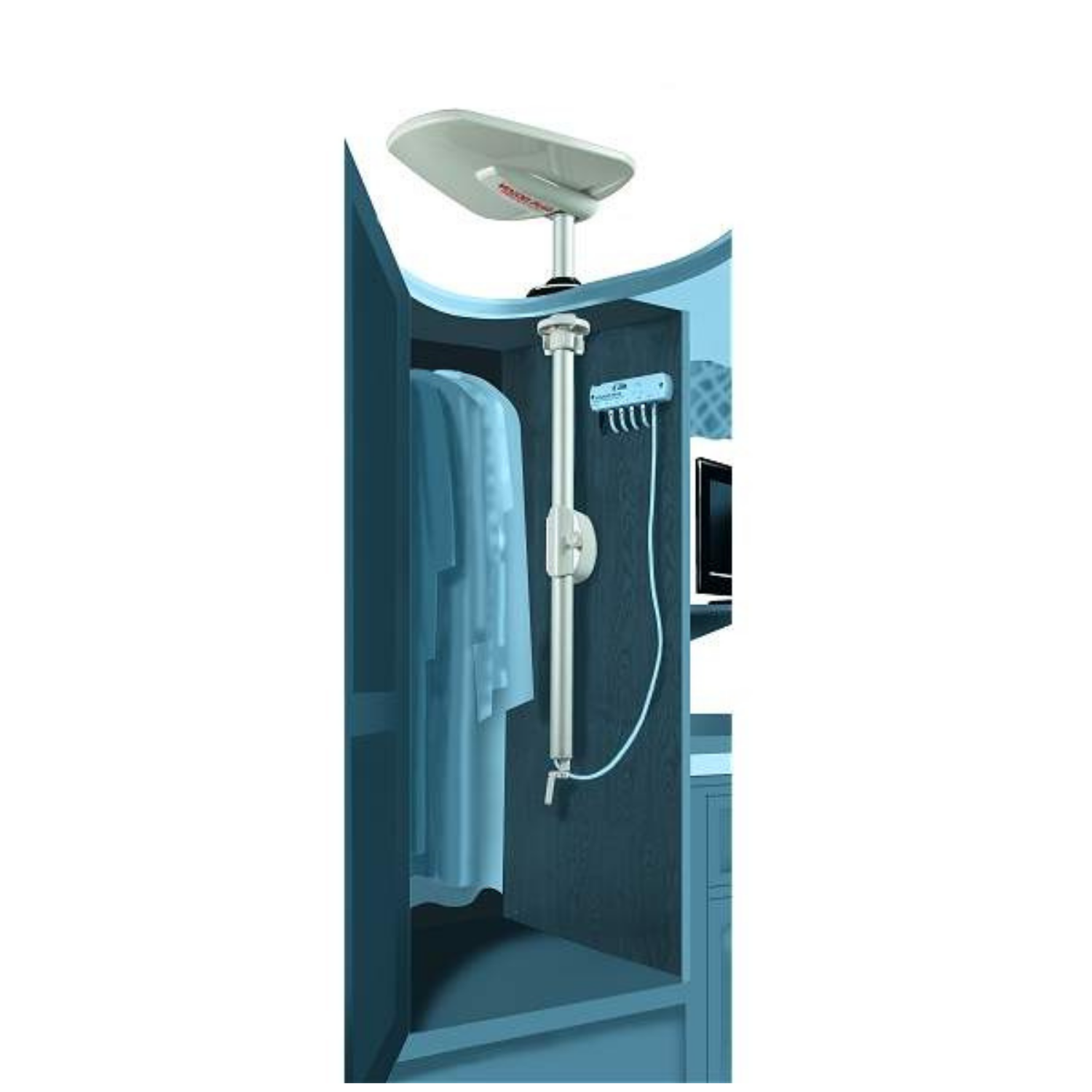

* Mast intrusion into locker 875mm inc winding handle (Roof cavity being 3cm approx)
* Antenna dome Installed – Length 412mm – Width 348mm – Height 108mm
* Mounting Foot & Gaiter – Diameter 122mm – Height 35mm – Roof cavity range 25-50mm

** Please note that the roof mounting assembly kit that is supplied with this product is not suitable for sloping roofs. An alternative assembly kit can be purchased in the spares and repairs section of this website.

EU Declaration of Conformity

Grade UK Ltd T/A Vision Plus hereby declares that the radio equipment type VP2, VP2+2, VP3, VP4 and VP5 are in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following link:  EU Declaration of Conformity

Product Code 04-3080

Barcode: 5029833430803

Part Number: 04-3080
