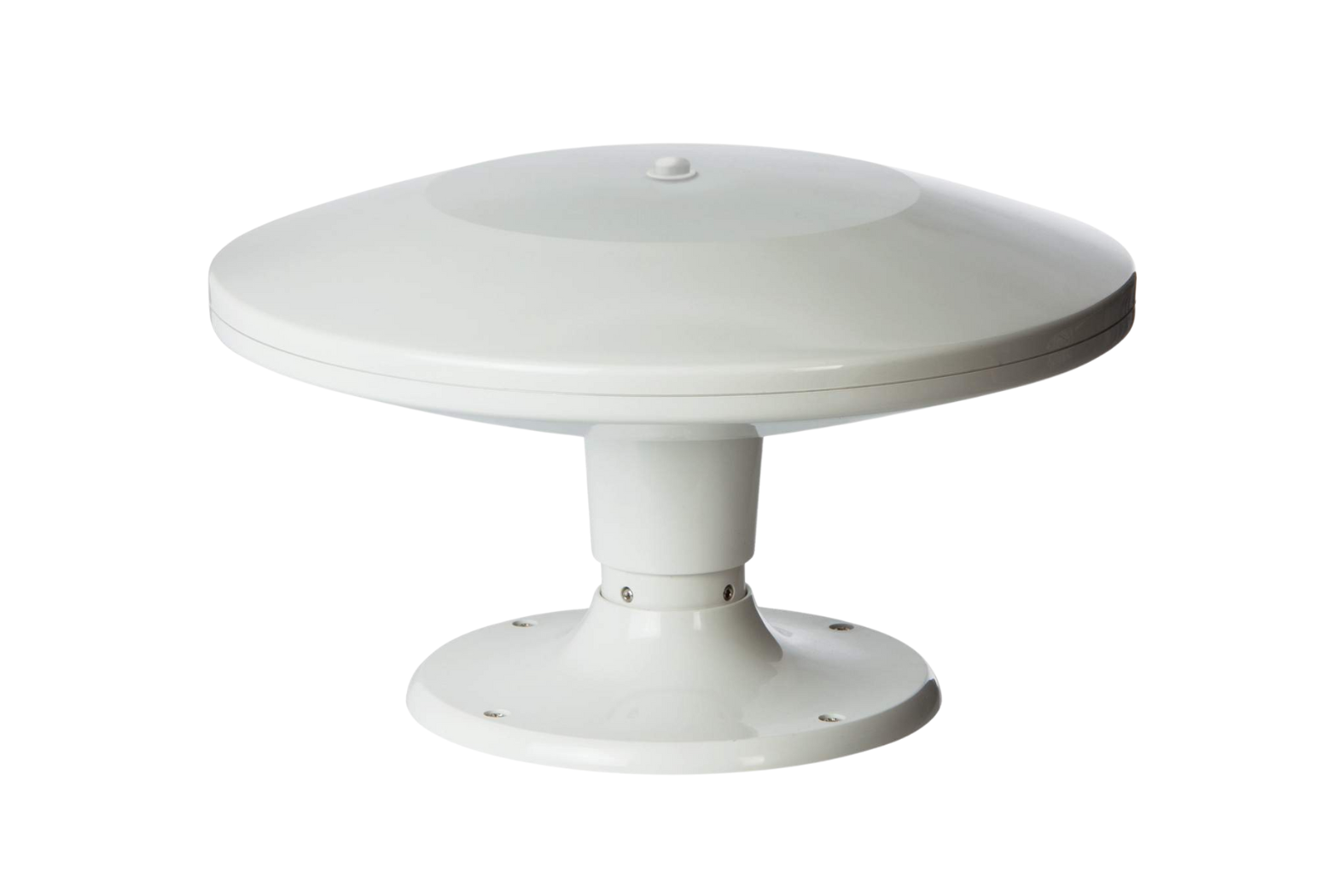

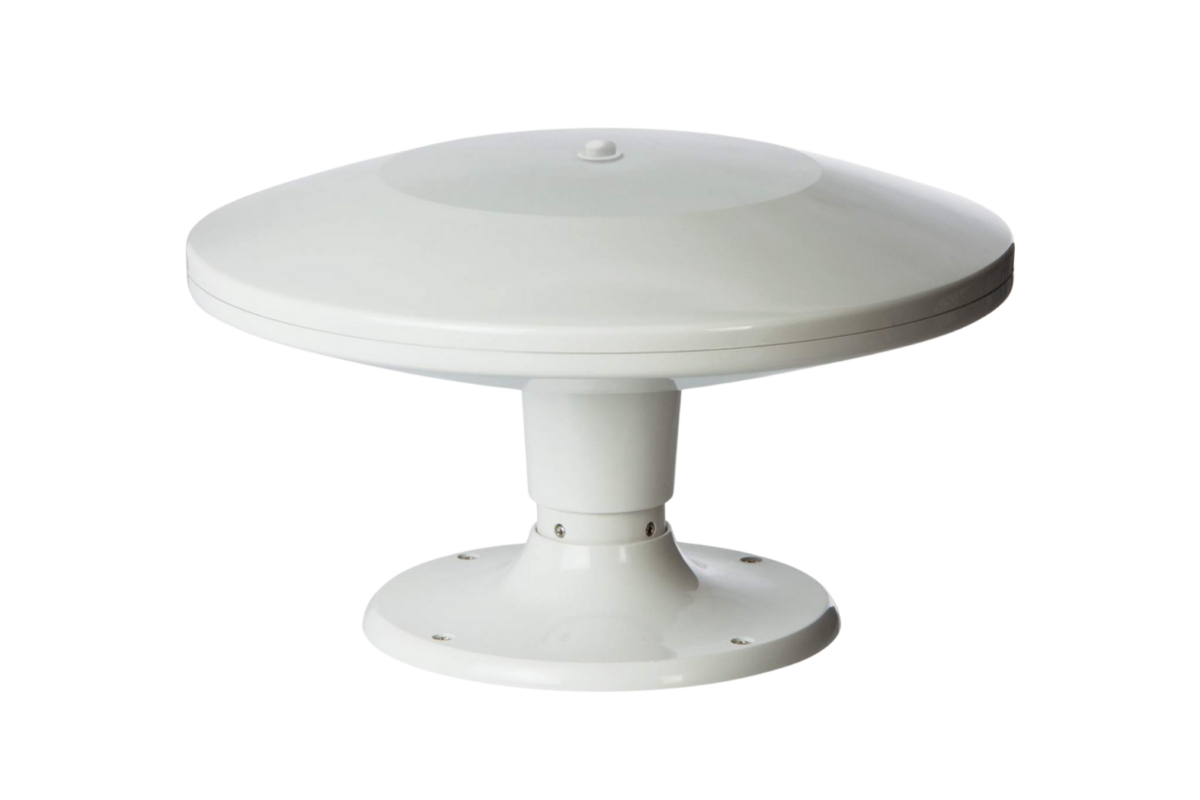

Vision Plus Status 350 Omi-Directional Digital Antenna

The Status 350/5 is designed for mobile use, and satisfies a number of important criteria, whilst overcoming some of the compromises associated with this design of antenna. The Omni-Directional S315 receives TV signals through 360 degrees using an electronic amplifier to boost signals.

TV reception can be greatly affected by the orientation of the antenna and it is crucial that all antennas are mounted level. Therefore the 350 has the ability to be finely adjusted to remain level on gradients up to 22 degrees – a unique feature only offered by STATUS. The 350 is available in two models depending on your particular installation. Both are designed to be versatile, offering three fitting options as standard – Permanent Fitting – 25mm Mast Fitting and Suction Pad Fitting. The Permanent option can even be mounted over a small locker, as well as a wardrobe.

The 350/5 has 5 metres of coaxial cable. For ease of use the 350 unlike the old 330 no longer requires the pinacle on top of the dome as the electronics are now contained within the dome. Furthermore, the antenna itself can be removed leaving in place the Mounting Foot, which can be sealed with a blanking cap. The 350 has a proven track record of being the countries most popular Omni-Directional Antenna.

– Frequency – TV 470-790 Mhz
– Coax Cable : 5 meters and plug
– Designed for digital televisiton signals
– Receives horizontal and vertical signals through 360 degrees
– Incorporates a power amplifier with variable gain adjustment
– Standard fitting options, roof or mast mount
– Angle adjustable, allowing level mounting on a sloping surface
– Easily removable antenna dome
– Receives signals from 360°
– Removes the need to rotate aerial to tune the TV

Barcode: 5029833420859

Part Number: 04-2085/5/VR2

Supplier MPN: 04-2085/5/VP2

Dimensions: Base 180mm Top 315mm Height 220mm

Cable Length:TV Lead : 5m

Power Source: 12 – 24 v DC
